Star CNC

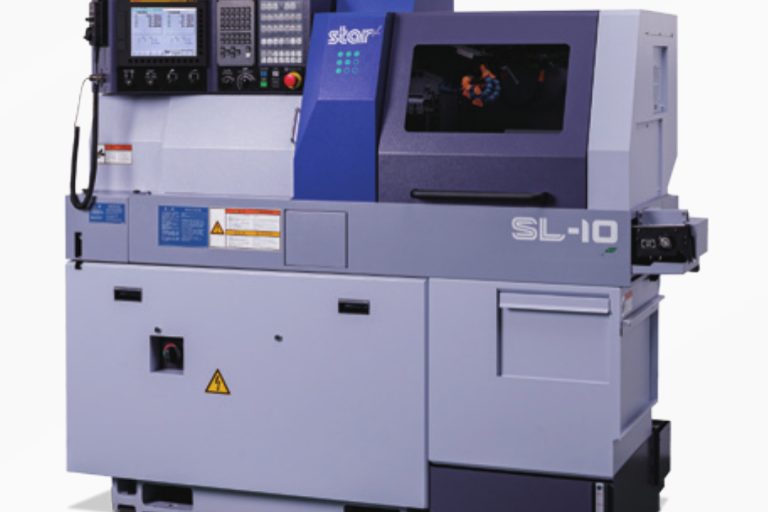

Star SL-10 Swiss-Type Automatic Lathe
Star SL-10 Swiss-Type Automatic Lathe
Share
| Specification | Value |
|---|---|
| Swing over bed | 10 mm |
| Max turning diameter | 10 mm (25/64 in) |
| Max turning length | 135 mm (5-5/16 in) |
| Bar capacity | 10 mm (25/64 in) |
| Chuck | 10 mm |
| Spindle nose | Integrated Collet Sleeve / Revolving G.B. |
| Spindle speed | Main: 18,000 rpm, Sub: 12,000 rpm |
| Motor hp | Main: 4.96 / 7.38 HP, Sub: 0.74 / 1.48 HP |
