Star CNC

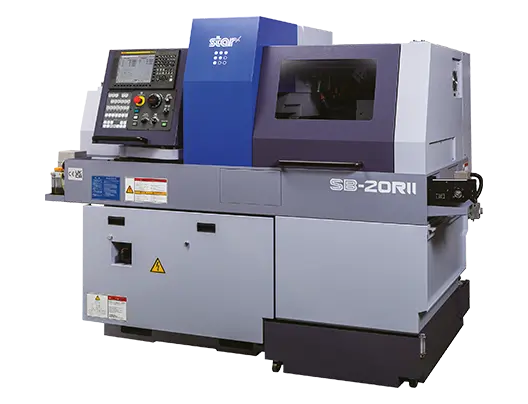

Star SB-20RII Swiss-Type Automatic Lathe
Star SB-20RII Swiss-Type Automatic Lathe
Share
| Specification | Value |
|---|---|
| Swing over bed | 20 mm [OP: 25.4 mm] |
| Max turning diameter | 20 mm (25/32 in) [OP: 25.4 mm] |
| Max turning length | 205 mm (8 in) |
| Bar capacity | 20 mm [OP: 25.4 mm] |
| Chuck | 20 mm [OP: 25.4 mm] |
| Spindle nose | Integrated Collet Sleeve / Revolving G.B. |
| Spindle speed | Main: 10,000 rpm, Sub: 10,000 rpm |
| Motor hp | Main: 2.95 / 4.96 HP, Sub: 2.01 / 2.95 HP |
